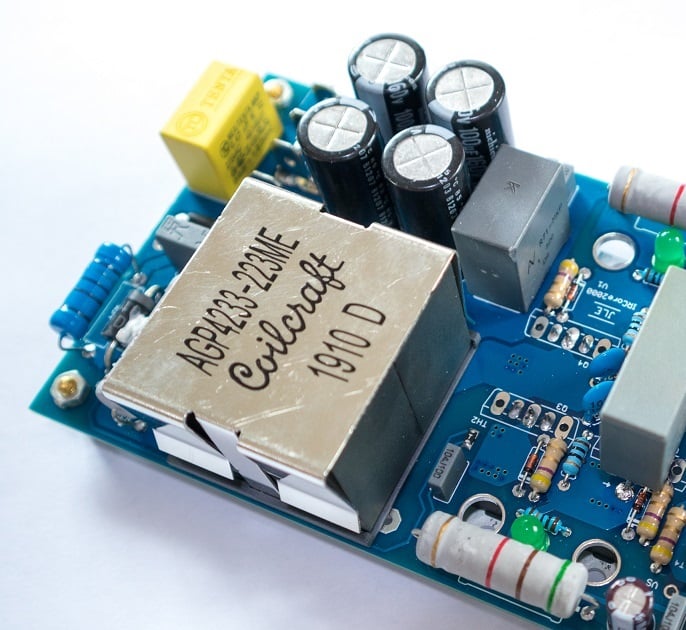

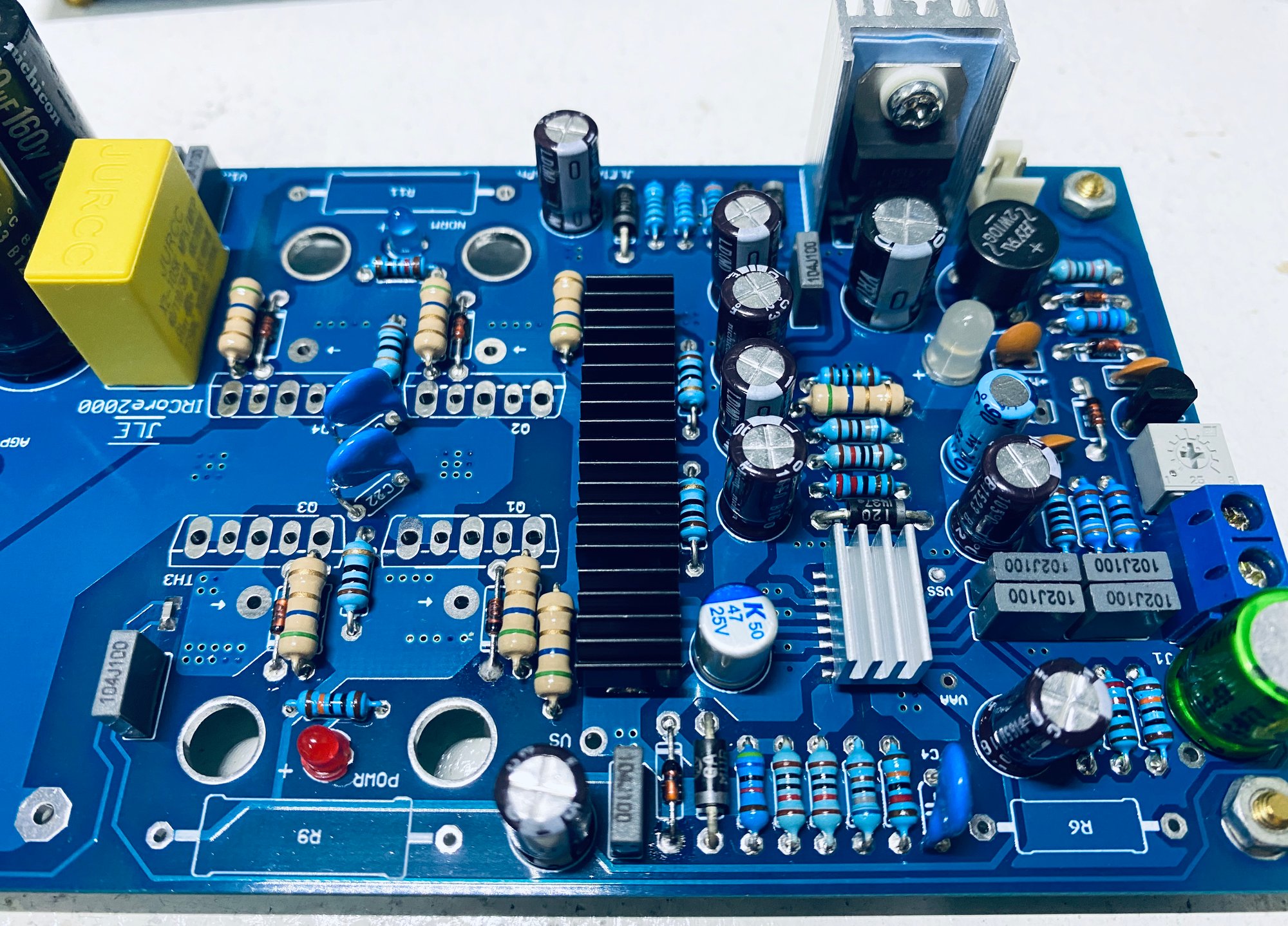

IRC-2000 1000W Class-D Amplifier Blank PCB

$12.00 USD - $24.00 USD Sold Out

Mono Class-D amplifier based on IRAUDAMP9.

The design implements a heavy duty gate driver circuit (FZT853 + FZT953) for operating 2 pairs of IRFB4227 mosfets.

The module is capable of delivering clean 600W into 4 ohms and 1000W burst into 2 ohms load.

Quality solder joints are very important to achieve optimum performance, so the builder should be highly skilled in soldering and should have an experience in building DIY amplifiers.

Added temp sensors on which will protect the amp on unstable conditions.

Package Includes
1 pc IRC2000 mono blank PCB (+ options below)
Version 1.2
BOM and schematic via email

Features
Heavy duty gate drive circuit
2 pairs output mosfet (not included)
Plate heatsink mounting
Version 1.2 uses better gate buffers

Specifications
Recommended Supply Voltage: ± 60V to ± 70V DC
Output power (± 70V, < 1% THD): 1000W at 2Ω, 550W at 4Ω, 280W at 8Ω
Voltage gain: 27
Input sensitivity: 2V RMS
Input impedance: 4.4K ohms
Load impedance: 2Ω or 4Ω
Idle Dissipation: ~4W at ± 70V DC
THD 1kHz, 4 ohms load: 0.006%(1W)
PCB Size: 3" x 6.5"
Overcurrent /short protection: Yes
Over/under voltage protection: No
Overheat / temp protect: onboard temp sensing
Speaker Protect: No

Variants:

Option A) Blank PCB, no parts

Option B) PCB, all SMT parts are already soldered including IRS2092 IC and gate buffers.
